This document reviews how to implement CRUD in the Larammerce platform. CRUD is an acronym that stands for Create, Read, Update, and Delete. These are the four basic operations that a computer program typically performs to work with the data in a database.

A ToDoList project is done step by step to illustrate the operational concepts.

Make migrations

The Larammerce project is based on Laravel platform, and since Laravel is schema-first, its database schema and table must be created first. So run the following command in the terminal:

php artisan make:migration create_todos_table

After running this command, a file named <a_date>_create_todos_table.php will be created in the path /path/to/larammerce-project/database/migrations/. To add some columns like subject and status to the todos_table, insert the following codes into this file:

<?php
    ...
    public function up()
    {
        Schema::create('todos', function (Blueprint $table) {
            $table->id();
            $table->string("subject");
            $table->tinyInteger("status");
            $table->timestamps();
        });
    }
    ...

Run the following command in the terminal to create the desired table:

php artisan migrate

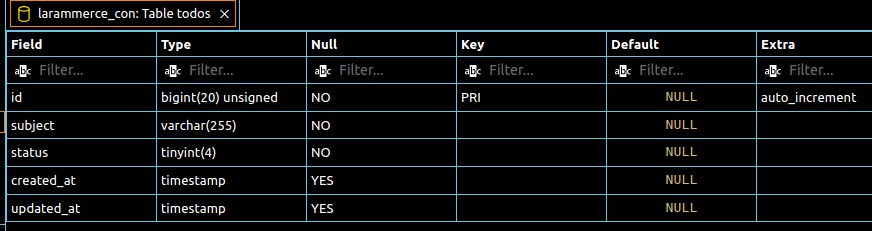

You can check your database to make sure the table todos is created:

Create Todo model

Create the file Todo.php in the path /path/to/larammerce-project/app/Models/ and put these codes inside:

<?php

namespace App\Models;

/**
 * @property integer id
 * @property string subject
 * @property integer status
 * @property Carbon created_at
 * @property Carbon updated_at
 */
class Todo extends BaseModel
{
    protected $table="todos";

    protected $fillable=[
        "subject", "status"
    ];

    protected static array $SORTABLE_FIELDS = [
        "id", "status", "created_at"
    ];

    protected static array $SEARCHABLE_FIELDS = [
        "subject"
    ];

    protected static ?string $IMPORTANT_SEARCH_FIELD = "subject";
    protected static ?string $EXACT_SEARCH_ORDER_FIELD = "created_at";

    public function getSearchUrl(): string
    {
        return "";
    }
}

Annotations

In the code above, the lines number 5 to 11 are called annotations. You can study the annotations (opens new window) page to learn more about this topic in the larammerce platform.

$SORTABLE_FIELDS defines on what basis the user can sort the list of todos.

$SEARCHABLE_FIELDS allows the user to do the search based on a specific field.

$IMPORTANT_SEARCH_FIELD makes a column of the database table more important in the search system.

$EXACT_SEARCH_ORDER_FIELD configures what field the search results are sorted by.

NOTE: The curious reader can refer to the laravel documentation in order to study more about the eloquent model.¹

Add route

Put the code below in the path /path/to/larammerce-project/routes/web.php inside the admin routes:

<?php
...
//Admin private routes
    ...
    //CustomerAddress
    Route::resource("customer-address", "CustomerAddressController", ["as" => "admin"]);

    //TodoModel
    Route::resource("todo", "TodoController", ["as" => "admin"]);
    ...

Add controller

The Larammerce project is using Laravel resource controllers. To know more about these controllers and how to use them, refer to the related document.²

Create the file TodoController.php in the path /path/to/larammerce-project/app/Http/Controllers/Admin/ and put these codes inside:

<?php

namespace App\Http\Controllers\Admin;

use App\Models\Todo;
use Illuminate\Contracts\Foundation\Application;
use Illuminate\Contracts\View\Factory;
use Illuminate\Contracts\View\View;
use Illuminate\Http\RedirectResponse;
use Illuminate\Http\Request;

/**
 * @role(enabled=true)
 */
class TodoController extends BaseController
{

    public function index(): Factory|View|Application
    {

    }

    public function create(): Factory|View|Application
    {

    }

    public function store(Request $request): RedirectResponse
    {

    }

    public function show(Todo $todo)
    {

    }

    public function edit(Todo $todo): Factory|View|Application
    {

    }

    public function update(Request $request, Todo $todo): RedirectResponse
    {

    }

    public function destroy(Todo $todo): RedirectResponse
    {

    }

    public function getModel(): ?string
    {
        return Todo::class;
    }
}

Define icon

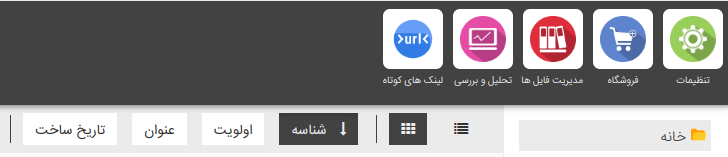

A todo icon is required in the top toolbar in order to display the todo list on the admin panel.

Search and select a todo flat icon png file and put it into the path /path/to/larammerce-project/public_html/admin_dashboard/images/icons/.

Put the following code in the path /path/to/larammerce-project/resources/assets/sass/icons.scss:

.h-icon {
    background-size: 100% 100% !important;
    ...
    &.icon-link-shortener {
        background: url("/admin_dashboard/images/icons/link-shortener.png");
    }

    &.icon-todo {
        background: url("/admin_dashboard/images/icons/todo-icon.png");
    }
    ...

Run the following command in the terminal:

npm run prod

The todolist appliance with the defined route and icon must be introduced to the program, so write the code below in the path /path/to/larammerce-project/config/cms/appliances.php:

<?php
return [
    ...
    //analytic appliance
    [
        ...
    ],
    //todolist appliance
    [
        "show_in_toolbar" => true,
        "properties" => [
            "id" => "todo_management",
            "name" => "general.appliances.todo",
            "icon" => "/admin_dashboard/images/icons/todo-icon.png",
            "route" => "admin.todo.index"
        ],
    ],
];

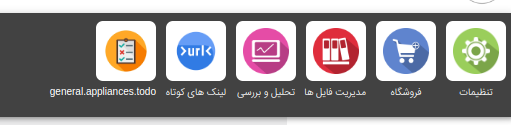

OUTPUT

Correct translation

Run the following command in the terminal:

php artisan translation:fill

Insert the following code in the path /path/to/larammerce-project/resources/lang/fa/general.php inside the appliances section:

<?php
return [
    "appliances" => [
        "setting" => "تنظیمات",
        "shop" => "فروشگاه",
        "directory" => "مدیریت فایل ها",
        "analytic" => "تحلیل و بررسی",
        "short_links" => "لینک های کوتاه",
        "todo" => "لیست وظایف",
    ],
    ...
];

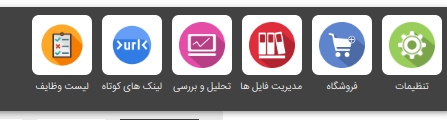

OUTPUT

Define index method

An index method must be defined in order to show the list of todos after clicking on the todo icon. So put the following code in the path /path/to/larammerce-project/app/Http/Controllers/Admin/TodoController.php inside the index method section:

<?php
...
class TodoController extends BaseController
{
    /**
     * @role(super_user)
     */
    public function index(): Factory|View|Application
    {
        parent::setPageAttribute();
        $todos = Todo::paginate(Todo::getPaginationCount());
        return view('admin.pages.todo.index', compact('todos'));
    }
    ...
}

Create index view

In the path /path/to/larammerce-project/resources/views/admin/pages/, create a directory named todo. In the todo directory, create the file index.blade.php and put these codes inside:

@extends('admin.layout')

@section('bread_crumb')
    <li><a href="{{route('admin.todo.index')}}">وظایف</a></li>
    <li class="active"><a href="{{route('admin.todo.index')}}">لیست وظیفه ها</a></li>

@endsection

@section('main_content')
    <div class="inner-container">
        <div class="toolbar">
            <ul>
                @foreach(SortService::getSortableFields('Todo') as $sortable_field)
                    <li class="btn btn-default {{$sortable_field->is_active ? "active" : ""}}"
                        href="{{route('admin.null')}}?sort_model=Todo&sort_field={{$sortable_field->field}}&sort_method={{$sortable_field->method}}"
                        act="link">
                        @if($sortable_field->is_active)
                            <i class="fa {{$sortable_field->method == SortMethod::ASCENDING ? "fa-long-arrow-up" : "fa-long-arrow-down"}}"></i>
                        @endif
                        {{$sortable_field->title}}
                    </li>
                @endforeach
            </ul>
        </div>
        <div class="inner-container has-toolbar has-pagination">
            <div class="view-port">
                @include('admin.pages.todo.layout.list')
            </div>
            <div class="fab-container">
                <div class="fab green">
                    <button act="link" href="{{route('admin.todo.create')}}">
                        <i class="fa fa-plus"></i>
                    </button>
                </div>
            </div>
        </div>
        @include('admin.templates.pagination', [
            "modelName" => "Todo",
            "lastPage" => $todos->lastPage(),
            "total" => $todos->total(),
            "count" => $todos->perPage(),
            "parentId" => $scope ?? null
        ])
    </div>
@endsection

Add layout

Create the file list.blade.php in the path /path/to/larammerce-project/resources/views/admin/pages/todo/layout/ and put these codes inside:

@foreach($todos as $todo)
    <div
        class="col-lg-offset-1 col-lg-10 col-md-offset-0 col-md-12 col-sm-offset-0 col-sm-12 col-xs-offset-0 col-xs-12 list-row roles">
        <div class="col-lg-2 col-md-2 col-sm-4 col-xs-3 col">
            <div class="label">شناسه</div>
            <div>{{$todo->id}}#</div>
        </div>
        <div class="col-lg-6 col-md-3 col-sm-4 col-xs-6 col">
            <div class="label">موضوع</div>
            <div>{{$todo->subject}}</div>
        </div>
        <div class="col-lg-2 col-md-3 col-sm-4 col-xs-6 col">
            <div class="label">وضعیت</div>
            <div>{{$todo->status}}</div>
        </div>
        <div class="col-lg-2 col-md-6 col-sm-12 col-xs-12 col">
            <div class="label">عملیات</div>
            <div class="actions-container">
                <a class="btn btn-sm btn-primary" href="{{route('admin.todo.edit', $todo)}}">
                    <i class="fa fa-pencil"></i>
                </a>
                <a class="btn btn-sm btn-danger virt-form"
                   data-action="{{ route('admin.todo.destroy', $todo) }}"
                   data-method="DELETE" confirm>
                    <i class="fa fa-trash"></i>
                </a>
            </div>
        </div>
    </div>
@endforeach

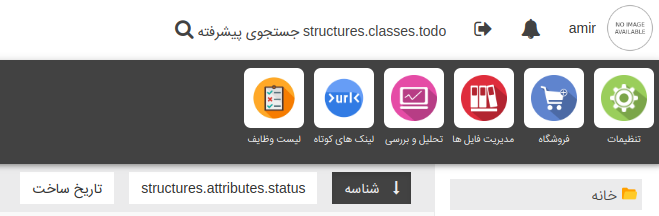

OUTPUT

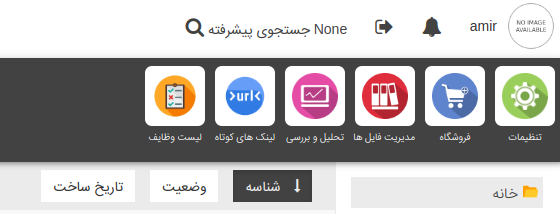

Correct translation

Run the following command in the terminal:

php artisan translation:fill

This command finds the columns that are newly added to the system and lets you to write the translation for them.

Now you can see that one new line is added to the file /path/to/larammerce-project/resources/lang/fa/structures.php:

<?php
return [
  'attributes' =>
  [
    ...
    'representative_type' => 'نوع آشنایی با سیستم',
    'status' => 'None'
    ...
  ]
  ...
];

Change the new line as belows:

<?php
return [
  'attributes' =>
  [
    ...
    'representative_type' => 'نوع آشنایی با سیستم',
    'status' => 'وضعیت'
    ...
  ]
  ...
];

OUTPUT

Define create method

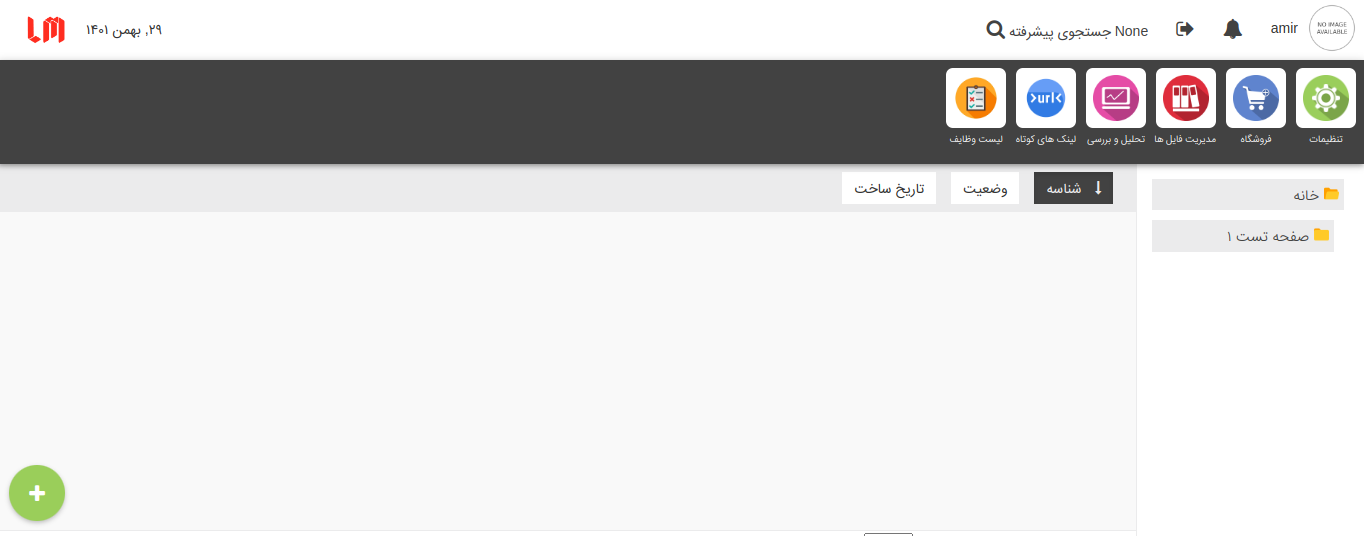

So far, you have got the list of todos:

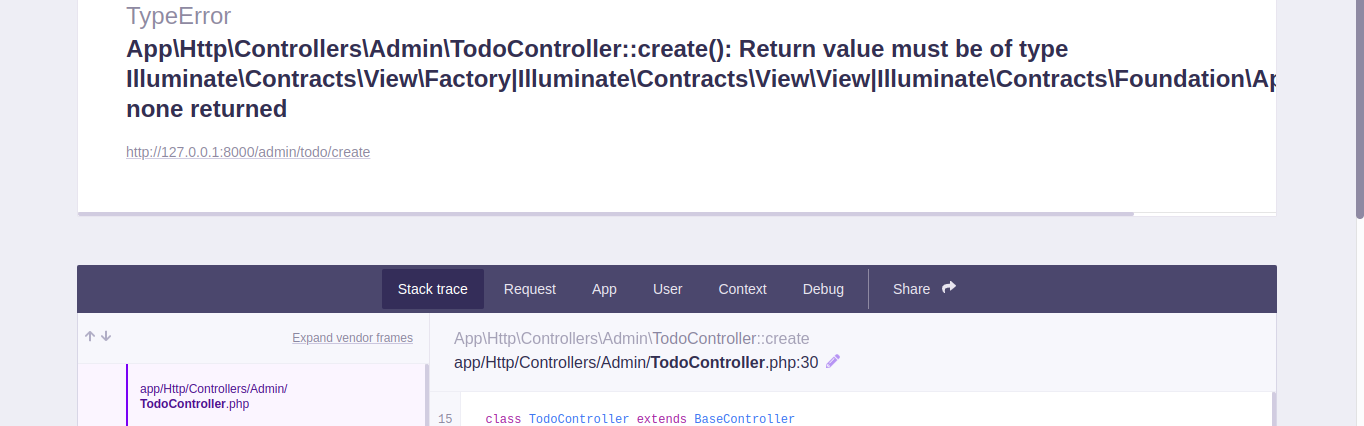

If you click on the + icon to create a new todo, you will get this error:

So you must define the create method.

Put the following code in the path /path/to/larammerce-project/app/Http/Controllers/Admin/TodoController.php inside the create method section:

<?php
...
class TodoController extends BaseController
{
    ...
    /**
     * @role(super_user)
     */
    public function create(): Factory|View|Application
    {
        return view('admin.pages.todo.create');
    }
    ...
}

Add create view

Make the file create.blade.php in the path /path/to/larammerce-project/resources/views/admin/pages/todo/ and put these codes inside:

@extends('admin.form_layout.col_4')

@section('bread_crumb')
    <li><a href="{{route('admin.todo.index')}}">وظایف</a></li>
    <li class="active"><a href="{{route('admin.todo.create')}}">اضافه کردن وظیفه</a></li>

@endsection

@section('form_title')اضافه کردن وظیفه@endsection

@section('form_attributes') action="{{route('admin.todo.store')}}" method="POST"  @endsection

@section('form_body')
    <div class="input-group group-sm col-lg-12 col-sm-12 col-md-12 col-xs-12">
        <span class="label">موضوع</span>
        <input class="form-control input-sm" name="subject" value="{{old('subject')}}">
    </div>
@endsection

@section('form_footer')
    <button type="submit" class="btn btn-default btn-sm">ذخیره</button>
@endsection

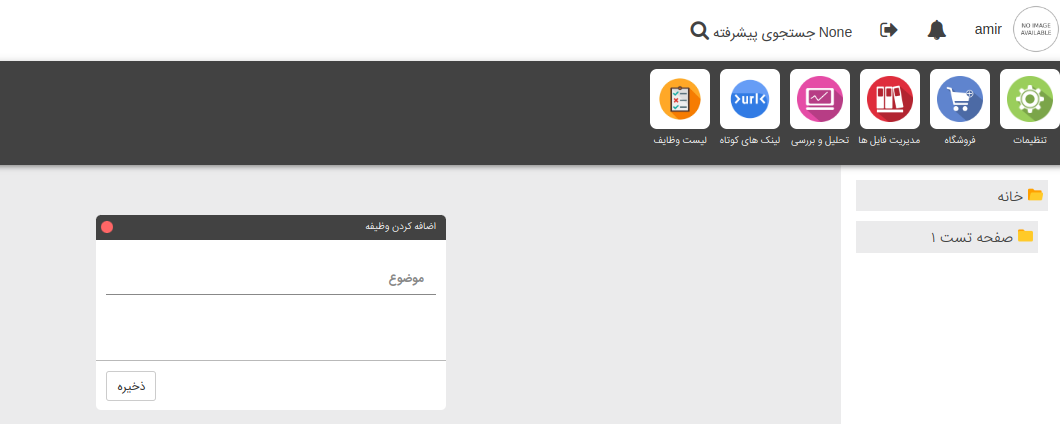

OUTPUT

Define store method

In order to save the new todo, you must define the store method.

Insert the code below in the path /path/to/larammerce-project/app/Http/Controllers/Admin/TodoController.php inside the store method section:

<?php
...
class TodoController extends BaseController
{
    ...
    /**
     * @role(super_user)
     * @rules(subject="required|min:5")
     */
    public function store(Request $request): RedirectResponse
    {
        $todo=Todo::create($request->only("subject"));
        return response()->redirectToRoute("admin.todo.index");
    }
    ...
}

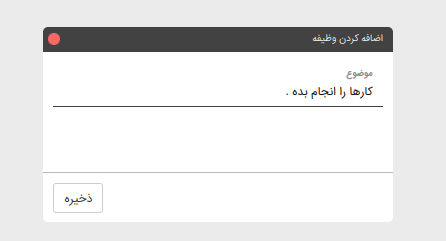

Now create a new todo:

Click on the ذخیره button to save the new todo.

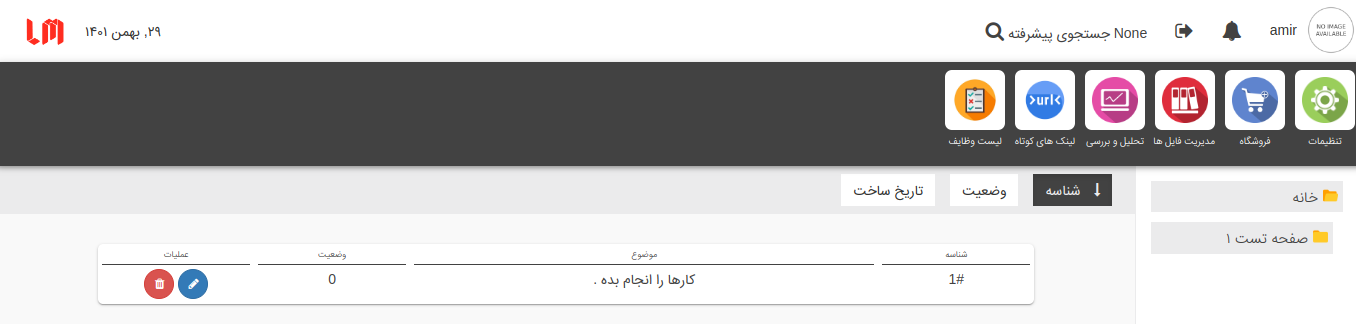

OUTPUT

Add edit view

In the todo list, each item has an edit icon:

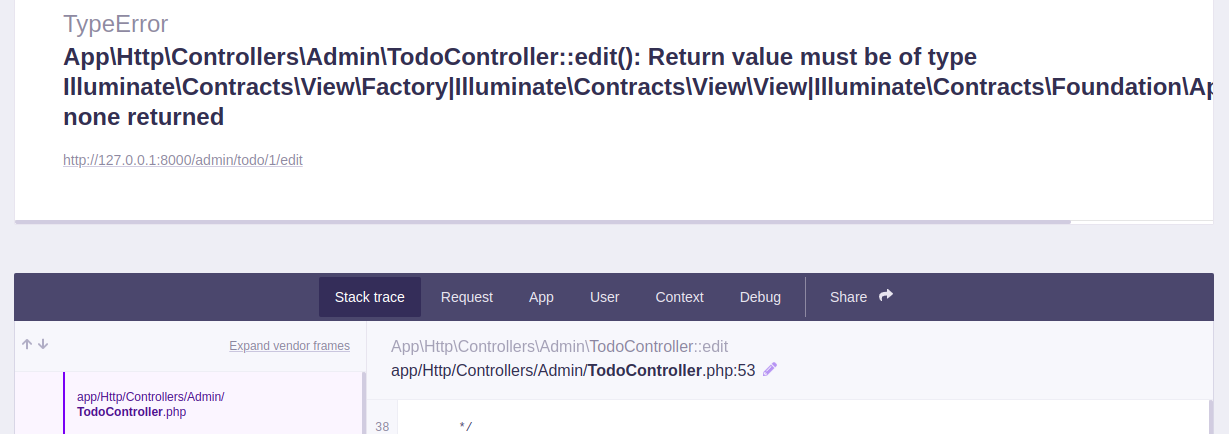

Clicking on the edit icon will give you this error:

So you must add an edit view.

Make the file edit.blade.php in the path /path/to/larammerce-project/resources/views/admin/pages/todo/ and write these codes inside:

@extends('admin.form_layout.col_4')

@section('bread_crumb')
    <li><a href="{{route('admin.todo.index')}}">وظایف</a></li>
    <li class="active"><a href="{{route('admin.todo.create', compact('todo'))}}">ویرایش وظیفه</a></li>

@endsection

@section('form_title')ویرایش وظیفه@endsection

@section('form_attributes') action="{{route('admin.todo.update', $todo)}}" method="POST" @endsection

@section('form_body')
    {{ method_field('PUT') }}
    <input type="hidden" name="id" value="{{ $todo->id }}">
    <div class="input-group group-sm col-lg-12 col-sm-12 col-md-12 col-xs-12">
        <span class="label">موضوع</span>
        <input class="form-control input-sm" name="subject" value="{{ $todo->subject }}">
    </div>
@endsection

@section('form_footer')
    <button type="submit" class="btn btn-default btn-sm">ذخیره</button>
    <input type="submit" class="btn btn-warning btn-sm" name="exit" value="ذخیره و خروج">
@endsection

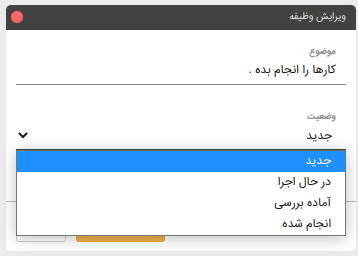

Define todo status

4 statuses can be attributed to each todo item: new in, in progress, ready for test, done. So you must define these statuses.

Create the file TodoStatus.php in the path /path/to/larammerce-project/app/Models/Enums/ and put these codes inside:

<?php

namespace App\Models\Enums;

use App\Utils\Common\BaseEnum;

class TodoStatus extends BaseEnum
{
    const NEW_IN=0;
    const IN_PROGRESS=1;
    const READY_FOR_TEST=2;
    const DONE=3;
}

Correct translation

Run the following command in the terminal:

php artisan translation:fill

Write the code below in the path /path/to/larammerce-project/resources/lang/fa/general.php:

<?php
return [
    "appliances" => [
        "setting" => "تنظیمات",
        "shop" => "فروشگاه",
        "directory" => "مدیریت فایل ها",
        "analytic" => "تحلیل و بررسی",
        "short_links" => "لینک های کوتاه",
        "todo" => "لیست وظایف",
    ],
    "todo" => [
        "status" => [
            "جدید",
            "در حال اجرا",
            "آماده بررسی",
            "انجام شده"
        ]
    ],
    ...
];

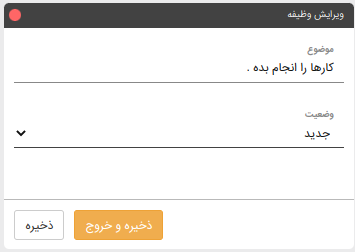

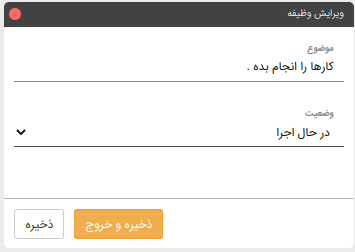

Complete edit view

Put the following code in the path /path/to/larammerce-project/resources/views/admin/pages/todo/edit.blade.php:

@extends('admin.form_layout.col_4')
...
@section('form_body')
    {{ method_field('PUT') }}
    <input type="hidden" name="id" value="{{ $todo->id }}">
    <div class="input-group group-sm col-lg-12 col-sm-12 col-md-12 col-xs-12">
        <span class="label">موضوع</span>
        <input class="form-control input-sm" name="subject" value="{{ $todo->subject }}">
    </div>
    <div class="input-group group-sm col-lg-12 col-sm-12 col-md-12 col-xs-12">
        <span class="label">وضعیت</span>
        <select class="form-control input-sm" name="status">
            @foreach($statuses as $status_id => $status_title)
                <option @if($status_id == $todo->status) selected @endif value="{{$status_id}}">{{$status_title}}</option>
            @endforeach
        </select>
    </div>
@endsection
...

Define edit method

Insert the code below in the path /path/to/larammerce-project/app/Http/Controllers/Admin/TodoController.php inside the edit method section:

<?php

namespace App\Http\Controllers\Admin;

use App\Models\Todo;
use App\Models\Enums\TodoStatus;
...
class TodoController extends BaseController
{
    ...
    /**
     * @role(super_user)
     */
    public function edit(Todo $todo): Factory|View|Application
    {
        $statuses=[];
        foreach(TodoStatus::values() as $value){
            $statuses[$value]=trans("general.todo.status." . $value);
        }
        return view('admin.pages.todo.edit', compact('todo', 'statuses'));
    }
    ...
}

OUTPUT

Now you can select a new status for your todo:

The result is as follows:

Correct list status representation

In the list of todos, the status item is represented as a number:

So you must correct the code for status in the path /path/to/larammerce-project/resources/views/admin/pages/todo/layout/list.blade.php:

@foreach($todos as $todo)
    <div
        class="col-lg-offset-1 col-lg-10 col-md-offset-0 col-md-12 col-sm-offset-0 col-sm-12 col-xs-offset-0 col-xs-12 list-row roles">
        ...
        <div class="col-lg-2 col-md-3 col-sm-4 col-xs-6 col">
            <div class="label">وضعیت</div>
            <div>{{trans("general.todo.status.".$todo->status)}}</div>
        </div>
        ...
    </div>
@endforeach

OUTPUT

Define update method

So far you have created the edit form:

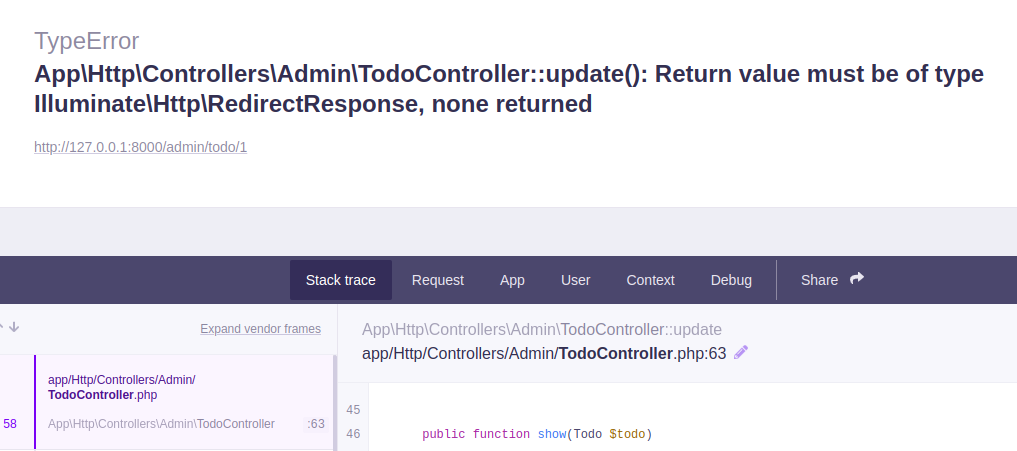

If you click on ذخیره button, this error will appear:

So you must define the update method to save the changes.

Write the following code in the path /path/to/larammerce-project/app/Http/Controllers/Admin/TodoController.php inside the update method section:

<?php

namespace App\Http\Controllers\Admin;

use App\Models\Todo;
use App\Models\Enums\TodoStatus;
use App\Utils\Common\History;
...
class TodoController extends BaseController
{
    ...
    /**
     * @role(super_user)
     * @rules(subject="required|min:10", status="in:".\App\Models\Enums\TodoStatus::stringValues())
     */
    public function update(Request $request, Todo $todo): RedirectResponse
    {
        $todo->update($request->only("subject", "status"));
        return History::redirectBack();
    }
    ...
}

Now click on ‌ذخیره و خروج button to save the new status for your todo.

OUTPUT

Define destroy method

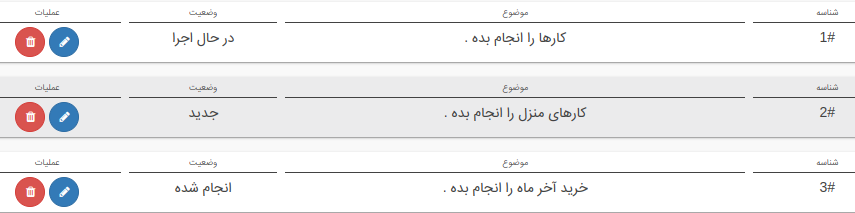

Create some new todos with different statuses:

Clicking on the delete icon should omit the related todo. So you must define the destroy method.

Insert the code below in the path /path/to/larammerce-project/app/Http/Controllers/Admin/TodoController.php inside the destroy method section:

<?php
...
class TodoController extends BaseController
{
    ...
    public function destroy(Todo $todo): RedirectResponse
    {
        $todo->delete();
        return redirect()->back();
    }
    ...
}

Now click on the delete icon for the todo with the id #2.

OUTPUT

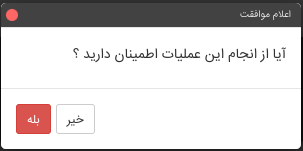

Click on بله.

OUTPUT

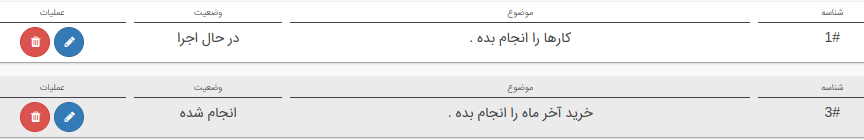

The todo with the id #2 has been deleted from the list.

Video source

---

References

1.Eloquent model in the laravel framework. (opens new window)

2.Resource controllers in the laravel framework. (opens new window)
